Projects

The plant register

WWS has delivered more than 140 plants since 1996.

Selected projects

Six projects in detail

Pilbara · June 2013 · 1200 EP, 372 m³/day

Cape Lambert Village "B"

Problem

Cape Lambert Village “B” needed treatment for 1,200 equivalent persons – 372 kL/day – against a treated effluent specification of total phosphorus below 1 mg/L and total nitrogen below 10 mg/L.

Solution

A packaged plant sized to 1,200 EP was built and fully factory-tested before shipment. Site construction ran 20 days from mobilisation to commissioning. The plant was commissioned on influent sewage and seeded from the adjacent Cape Lambert Village “A” plant, an existing WWS plant already in service.

Outcome

The process was producing compliant final effluent within seven days of commissioning.

Pilbara · June 2013 · 1600 EP, approximately 496 m³/day

Nammuldi Village

Problem

Nammuldi Village required a 1,600 EP plant – approximately 496 kL/day.

Solution

The plant was a modular SBR process.

Outcome

The process was producing high quality compliant final effluent within 72 hours of commissioning.

Pilbara · June 2012 · 900 EP, 280 kL/day, upgraded from 450 EP

West Angelas #1 Upgrade

Problem

West Angelas Village Plant 1 was commissioned in August 2006 at 450 EP, approximately 140 kL/day. As the village grew the plant needed to be expanded.

Solution

WWS expanded the existing plant by converting the process to a membrane bio reactor. The scope covered the design calculations, drawings, manuals and all components and labour to carry out the upgrade.

Outcome

The plant doubled in rated capacity and continues to operate. The MBR process lifts final effluent to “A grade” quality, which can be re-used for landscape reticulation.

Pilbara · October 2009 · 1600 EP, approximately 560 m³/day

Port Haven Village

Problem

Port Haven Accommodation Village at Port Hedland required 1,600 EP of treatment capacity – approximately 560 kL/day.

Solution

The plant was a modular SBR process.

Outcome

The process was producing compliant final effluent within 30 days. The plant was commissioned in October 2009 and remains in operation.

Pilbara · June 2013 · 88 m³/day

Finucane Island

Problem

Port Hedland Inner Harbour’s Finucane Island facility needed 88 kL/day of treatment for a “non-accommodation” waste water stream. These streams carry proportionally high influent nitrogen, and erratic curves.

Solution

The plant was designed specifically to address the high influent nitrogen and sporadic loading associated with non-accommodation applications.

Outcome

Very low and sporadic loading extended the time needed for the system biology to fully develop, but the plant was fully compliant within 40 days of commissioning and remains in operation.

Pilbara · April 2006 · 1000 EP, 310 m³/day

Pannawonica Town

Problem

Pannawonica is a Pilbara townsite: 1,000 EP, 310 kL/day, with the load profile of a small town and no neighbouring network.

Solution

The plant was a modular SBR process.

Outcome

The process was producing compliant final effluent within 30 days. The plant was commissioned in April 2006 and remains in operation.

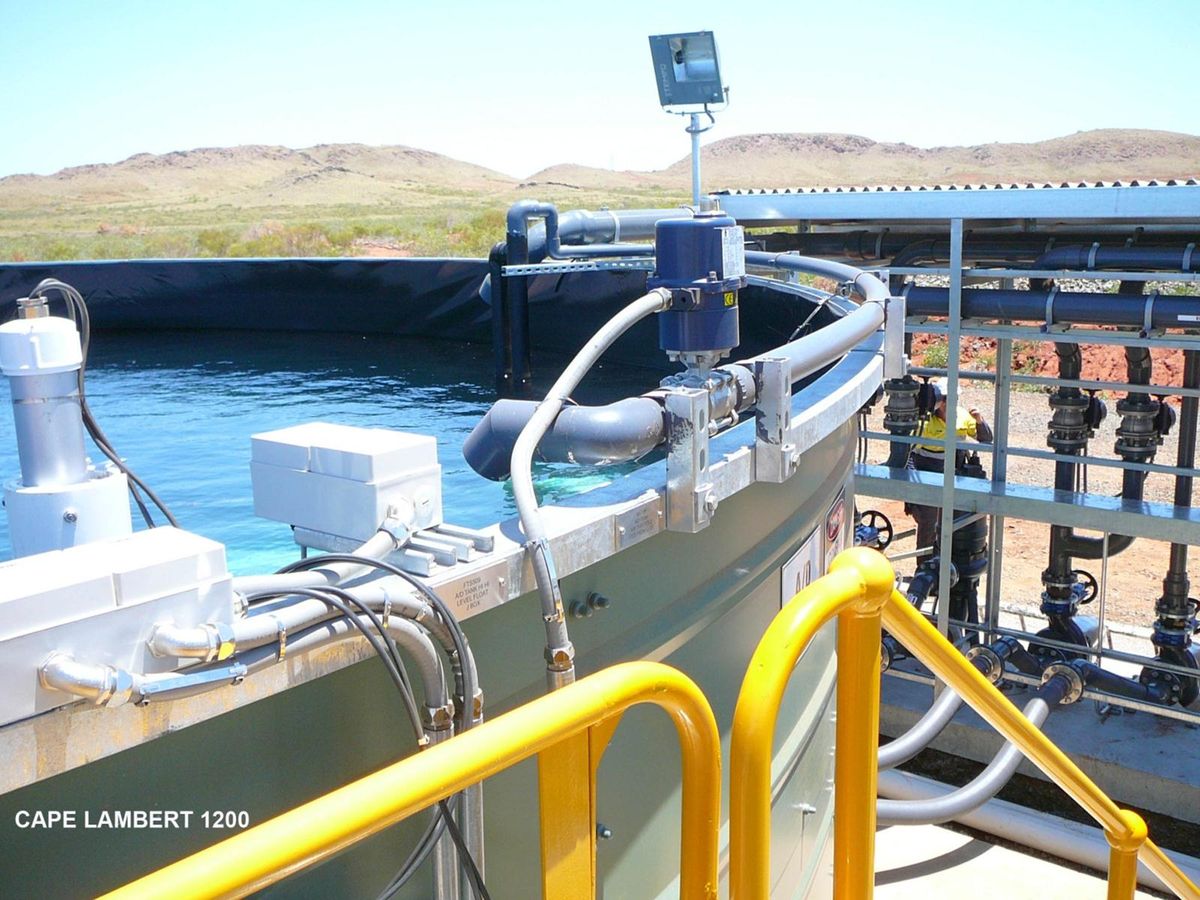

Cape Lambert Village “B” – aeration tank

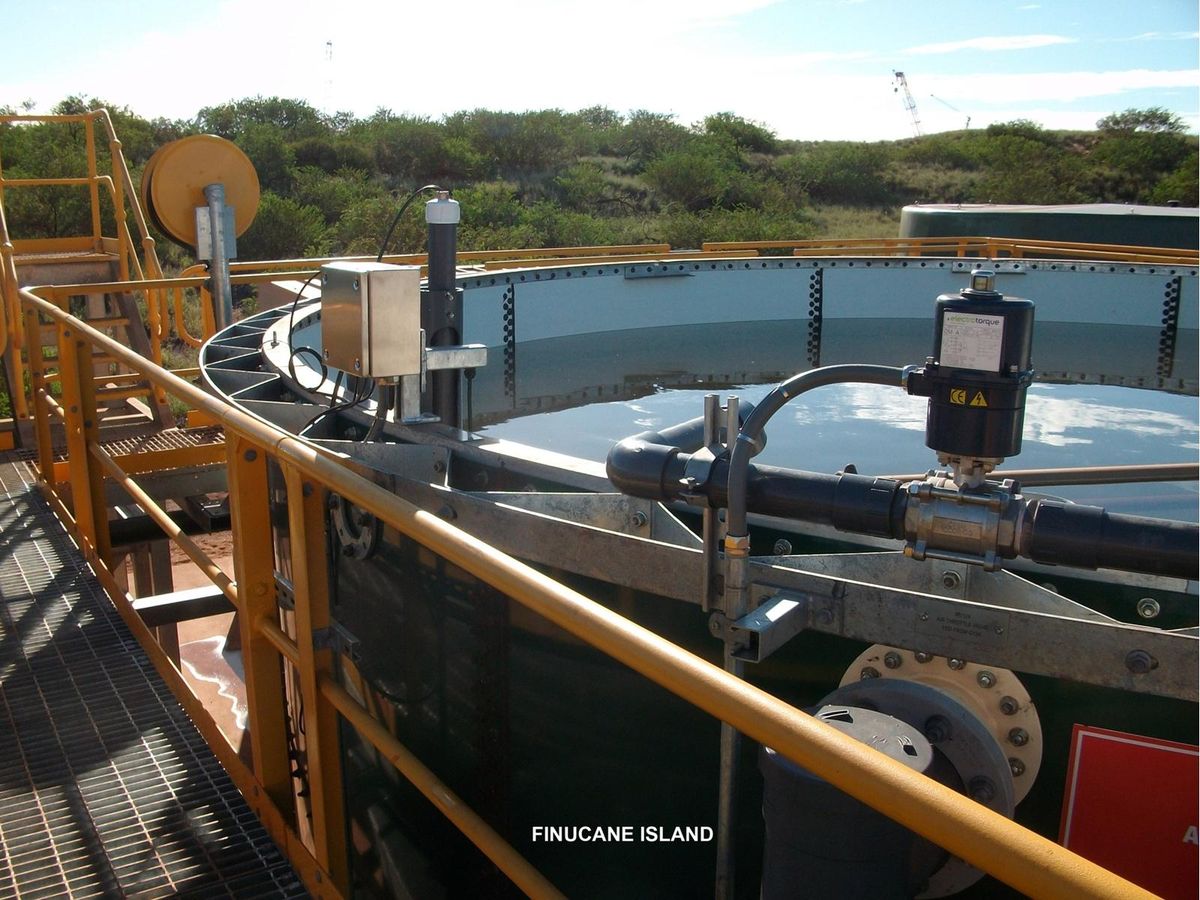

Finucane Island – clarifier and bridge

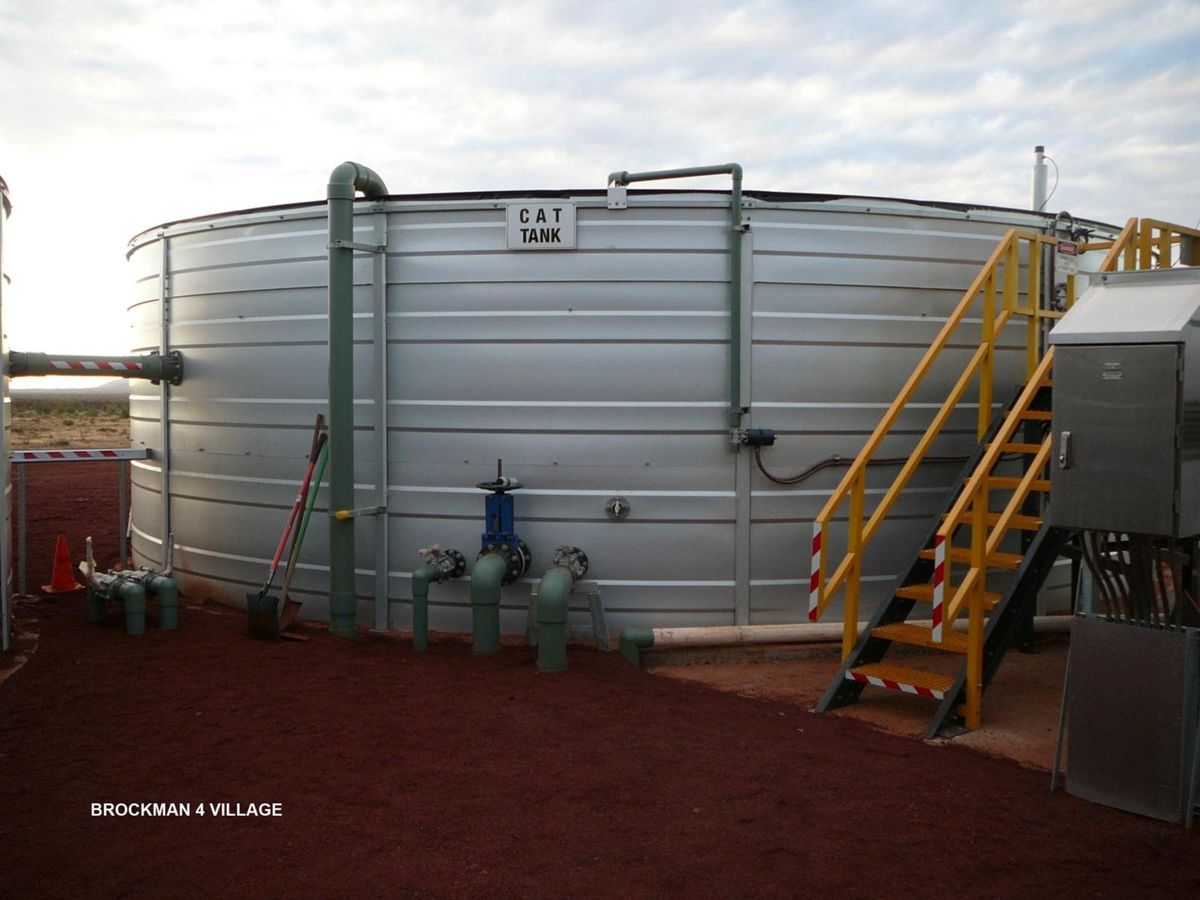

Brockman 4 Village – storage tank and access stair

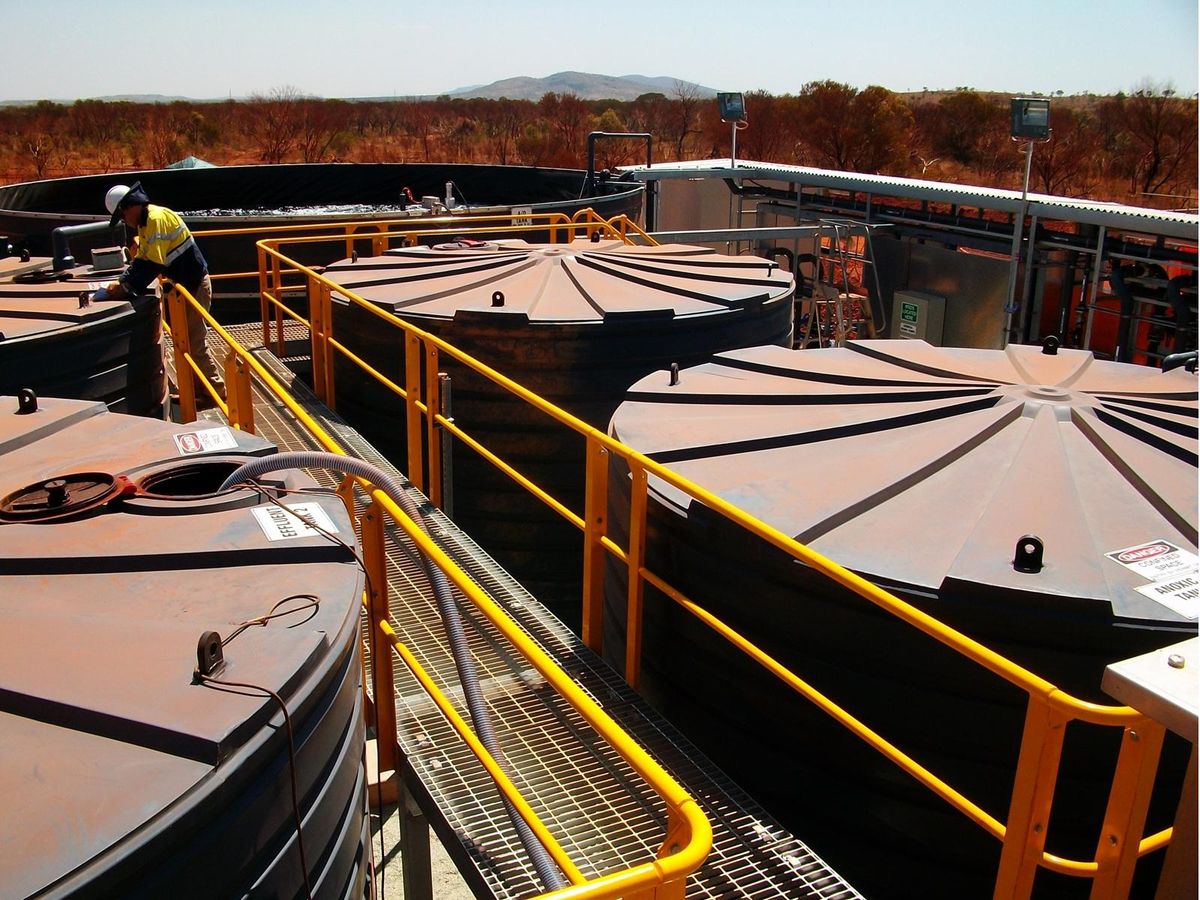

Operator on the walkway above the treatment tanks

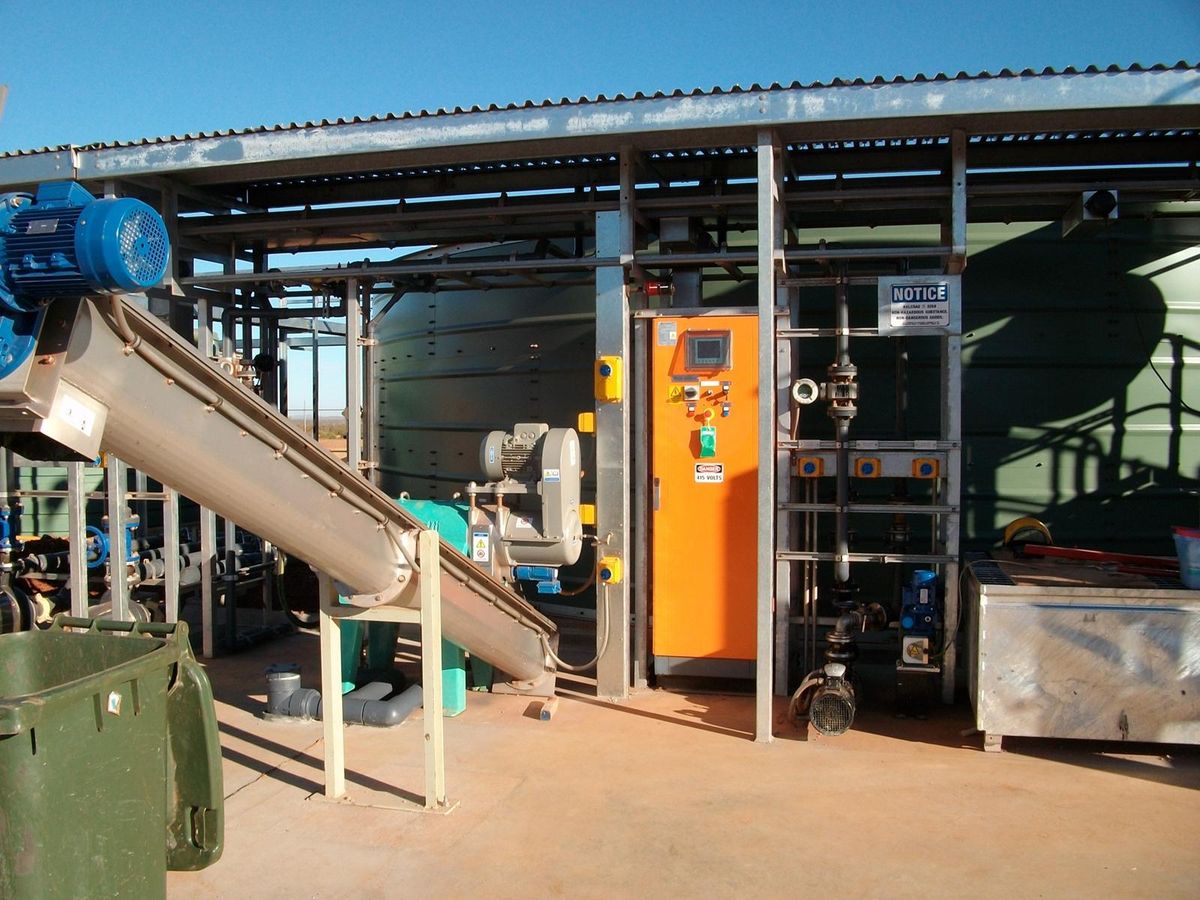

Inlet works, screw conveyor and process control panel

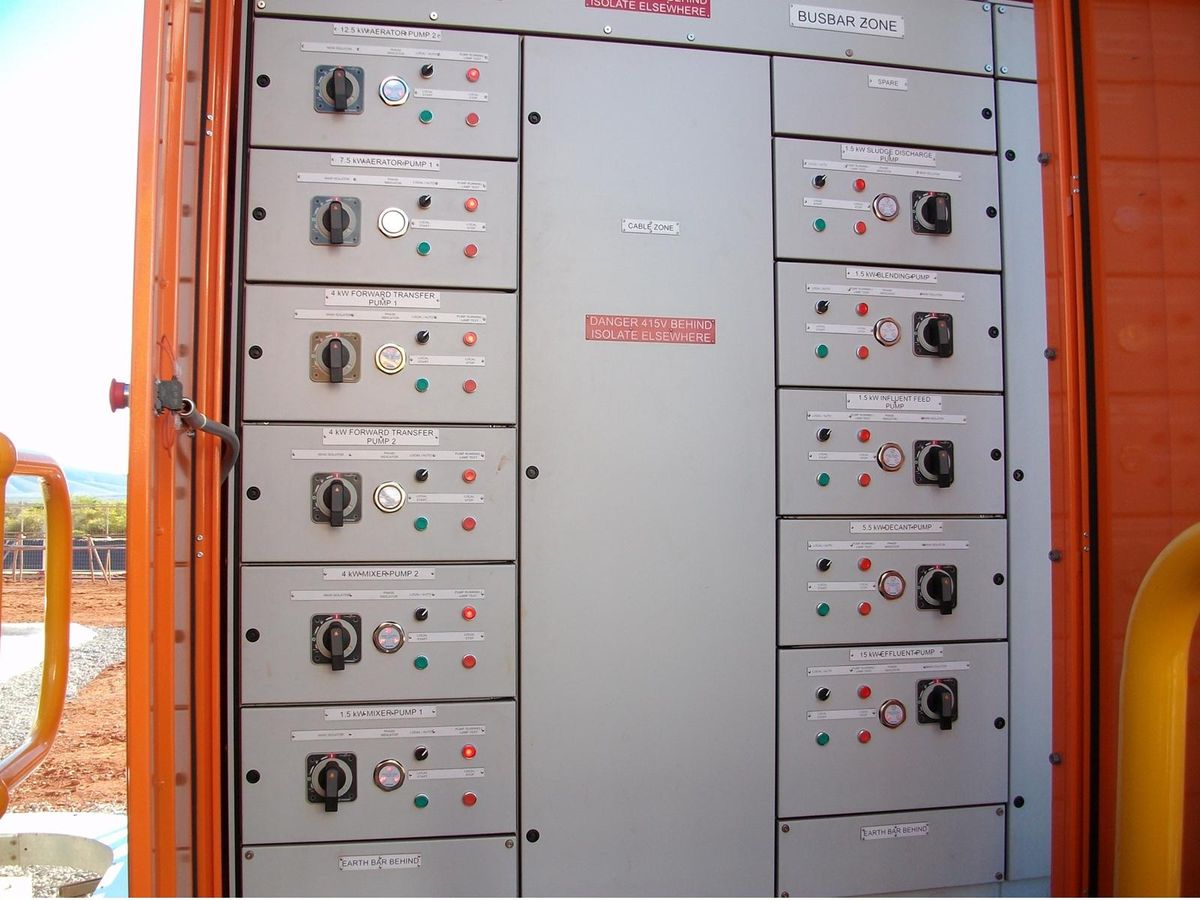

Motor control centre inside the plant switchroom

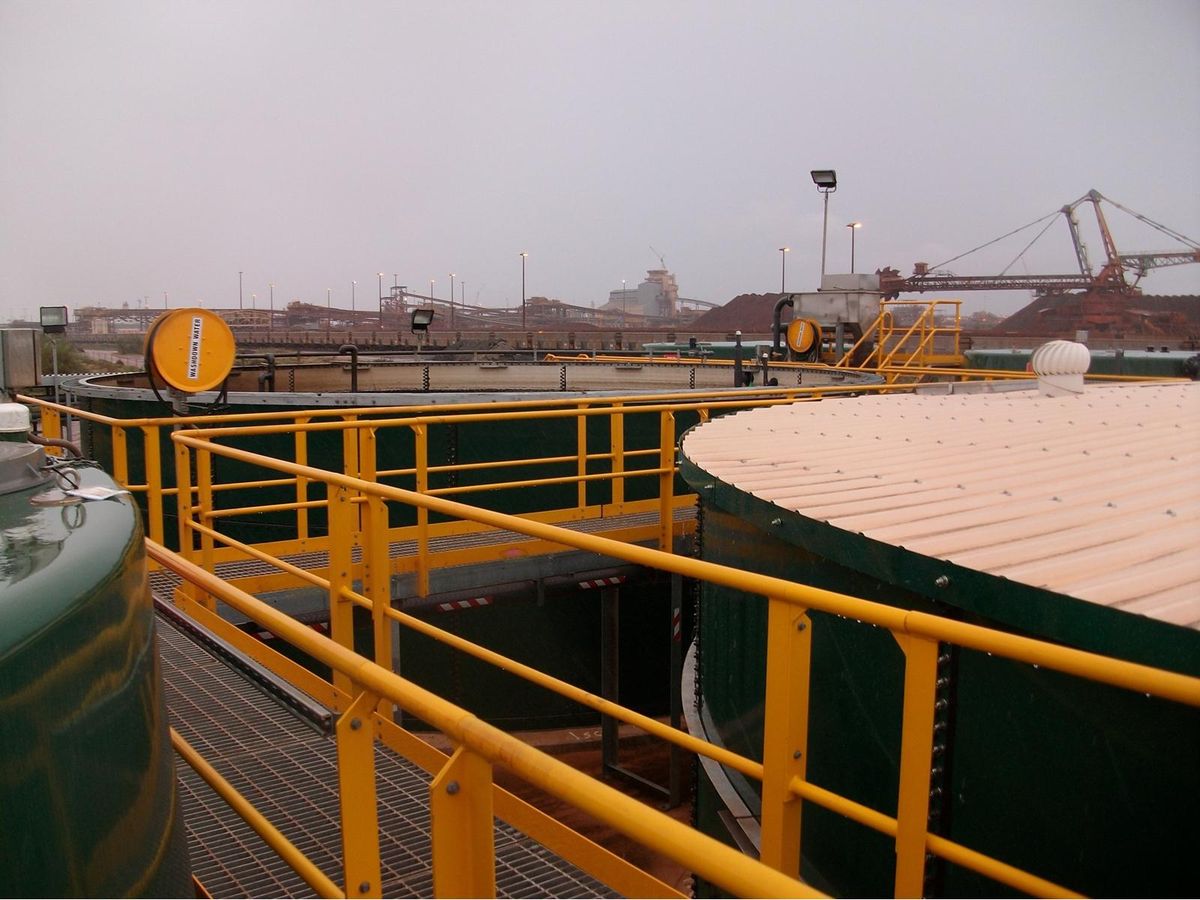

Process tanks at Nelson Point Port Hedland

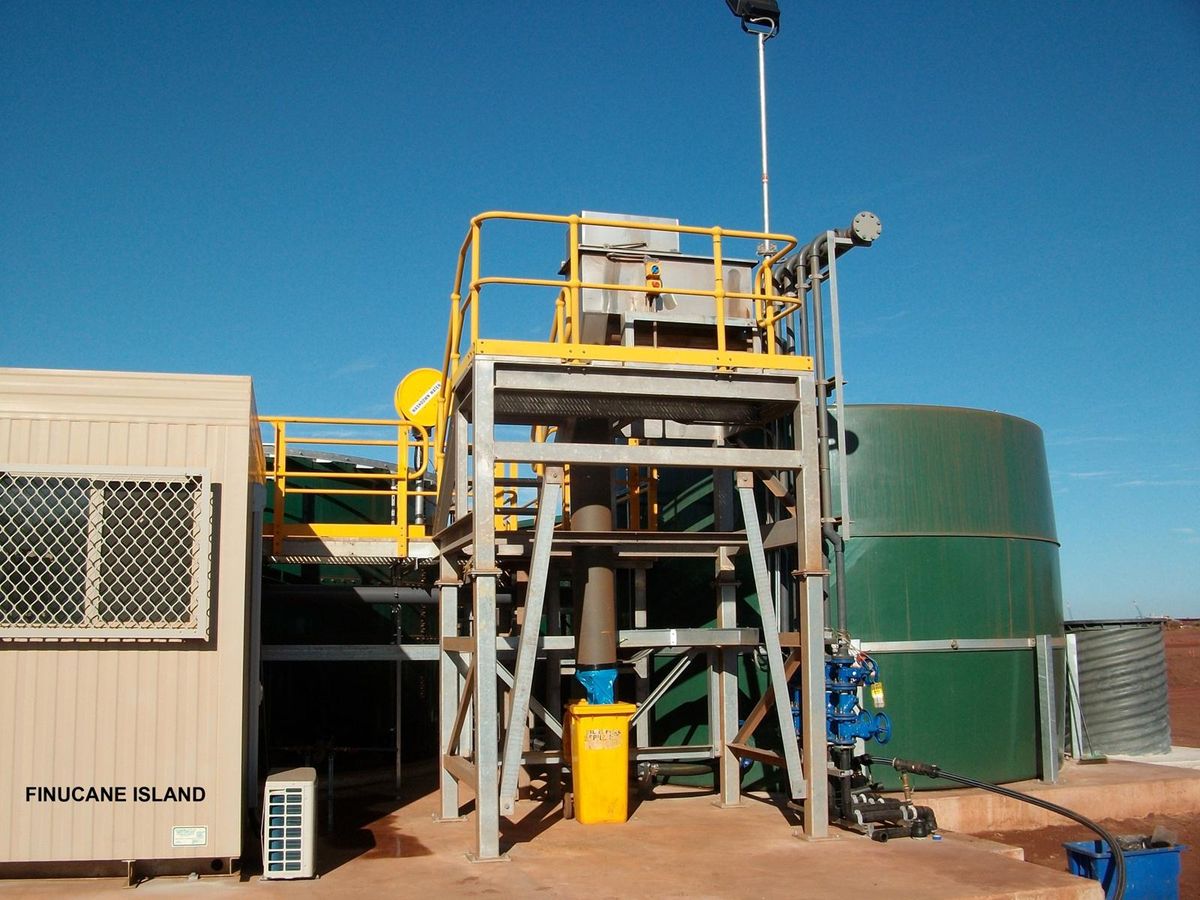

Finucane Island – process equipment and tanks

Project examples

Plants delivered by Waste Water Services, with service type, region, rated capacity, commissioning date and operational status.
Plant	Service	Capacity	Commissioned	Status
West Angelas #2 Upgrade West Angelas Village, Pilbara, Western Australia	Waste water treatment	900 EP, 280 kL/day, upgraded from 450 EP	May 2014	Operating
Brockman 4 Central Brockman 4 Mine, Pilbara, Western Australia	Waste water treatment	–	December 2013	Operating
Cape Lambert Village "B" Cape Lambert Accommodation Village, Pilbara, Western Australia	Waste water treatment	1200 EP, 372 m³/day	June 2013	Operating
Finucane Island Port Hedland, Western Australia	Waste water treatment	88 m³/day	June 2013	Operating
Nammuldi Village Nammuldi Village, Brockman 4, Pilbara, Western Australia	Waste water treatment	1600 EP, approximately 496 m³/day	June 2013	Operating
Nelson Point Port Hedland, Western Australia	Waste water treatment	184 m³/day	March 2013	Operating
Karara Village Plant 2 Perenjori, Western Australia	Waste water treatment	600 EP, 186 m³/day	October 2012	Operating
Karara Village Plant 1 Perenjori, Western Australia	Waste water treatment	600 EP, 186 m³/day	August 2012	Operating
West Angelas #1 Upgrade West Angelas Village, Pilbara, Western Australia	Waste water treatment	900 EP, 280 kL/day, upgraded from 450 EP	June 2012	Operating
Hope Downs 4 Plant 2 Hope Downs, Western Australia	Waste water treatment	600 EP, 186 m³/day	March 2012	Operating
Cape Lambert EPCM Cape Lambert Port, Pilbara, Western Australia	Waste water treatment	50 m³/day	January 2012	Decommissioned
Hope Downs 4 Plant 1 Hope Downs, Western Australia	Waste water treatment	600 EP, 186 m³/day	November 2011	Operating
Cape Lambert "A" Plant 2 Cape Lambert Accommodation Village, Pilbara, Western Australia	Waste water treatment	600 EP, 186 m³/day	August 2011	Decommissioned
West Angelas Mine West Angelas Mine, Pilbara, Western Australia	Waste water treatment	50 m³/day	August 2011	Operating
Jundunmunnah Plant 2 Tom Price, Pilbara, Western Australia	Waste water treatment	300 EP, 94 m³/day	June 2011	Operating
Weelumurra Village Weelumurra, Western Australia	Waste water treatment	150 EP, 46 m³/day	May 2011	Decommissioned
Koodaideri Village Koodaideri, Western Australia	Waste water treatment	150 EP, 46 m³/day	April 2011	Operating
Marandoo Mine Karajini, Western Australia	Waste water treatment	32 m³/day	April 2011	Operating
Marandoo Village Plant 2 Karajini, Western Australia	Waste water treatment	500 EP, 155 m³/day	January 2011	Operating
Hope Downs Nth Plant 2 Hope Downs, Western Australia	Waste water treatment	600 EP, 186 m³/day	July 2010	Operating
Karara Mine Karara, Perenjori Western Australia	Waste water treatment	60 m³/day	June 2010	Operating
Marandoo Village Plant 1 Karajini, Western Australia	Waste water treatment	500 EP, 155 m³/day	June 2010	Operating
Lochada Village Perenjori, Western Australia	Waste water treatment	300 EP, 93 m³/day	April 2010	Decommissioned
Sinclair Village Leinster Western Australia	Waste water treatment	200 EP, 62 m³/day	April 2010	Decommissioned
Port Haven Village Port Hedland, Western Australia	Waste water treatment	1600 EP, approximately 560 m³/day	October 2009	Operating
Brockman 4 Village Brockman 4 Village, Pilbara, Western Australia	Waste water treatment	1400 EP, approximately 434 m³/day	July 2008	Operating
West Angelas Plant 2 West Angelas Village, Pilbara, Western Australia	Waste water treatment	450 EP, 140 kL/day	February 2008	Operating
Marillana Village Yandi, Western Australia	Waste water treatment	400 EP, 140 m³/day	December 2007	Decommissioned
Cape Lambert "A" Plant 1 Cape Lambert Accommodation Village, Pilbara, Western Australia	Waste water treatment	600 EP, 186 m³/day	August 2007	Decommissioned
Hope Downs Nth Plant 1 Hope Downs, Western Australia	Waste water treatment	610 EP, 190 m³/day	August 2007	Operating
Hope Downs Mine Hope Downs, Western Australia	Waste water treatment	27 m³/day	March 2007	Operating
Hope Downs Sth Plant 2 Hope Downs, Western Australia	Waste water treatment	300 EP, 93 m³/day	December 2006	Operating
Koolan Island Village Koolan Island, Western Australia	Waste water treatment	270 EP, 80 m³/day	October 2006	Operating
West Angelas Plant 1 West Angelas Village, Pilbara, Western Australia	Waste water treatment	450 EP, approximately 140 m³/day	August 2006	Operating
Hope Downs Sth Plant 1 Hope Downs, Western Australia	Waste water treatment	300 EP, 93 m³/day	June 2006	Operating
Kangaroo Hill Village Dampier, Western Australia	Waste water treatment	600 EP, 186 m³/day	June 2006	Operating
Jundunmunnah Plant 1 Tom Price, Pilbara, Western Australia	Waste water treatment	500 EP, 155 m³/day	May 2006	Operating
Pannawonica Town Pannawonica, Western Australia	Waste water treatment	1000 EP, 310 m³/day	April 2006	Operating
Lawlers Village Leonora, Western Australia	Waste water treatment	400 EP, 120 m³/day	December 2005	Decommissioned
Sunrise Dam Mine Laverton, Western Australia	Waste water treatment	10 m³/day	March 2003	Operating
Spinifex Village Yandi, Western Australia	Waste water treatment	700 m³/day	March 2000	Operating
St Ives Goldmine Kambalda, Western Australia	Waste water treatment	20 m³/day	March 2000	Operating
Brockman 2 Minesite Brockman 2, Western Australia	Waste water treatment	20 m³/day	March 1999	Operating
Three Springs Talc Mine Three Springs, Western Australia	Waste water treatment	10 m³/day	March 1999	Operating
Brockman 4	Potable water	–	–	Detail pending
Mesa A	Waste water treatment	–	–	Detail pending
Trade Waste	Trade waste	–	–	Detail pending
West Angelas	Potable water	–	–	Detail pending

Site and operation names are published as they appear on the Waste Water Services project record. They are listed to show where WWS plant operates; no endorsement by the operators is implied.

Find a comparable plant

Send the population or flow and the discharge requirement. We will point to the plant on this register closest to it, and the commissioning time it took.
