Projects

The plant register

WWS has delivered more than 140 plants since 1996.

Selected projects

Six projects in detail

Pilbara · June 2013 · 1200 EP, 372 m³/day

Cape Lambert Village "B"

Problem

Cape Lambert Village “B” needed treatment for 1,200 equivalent persons – 372 kL/day – against a treated effluent specification of total phosphorus below 1 mg/L and total nitrogen below 10 mg/L.

Solution

A packaged plant sized to 1,200 EP was built and fully factory-tested before shipment. Site construction ran 20 days from mobilisation to commissioning. The plant was commissioned on influent sewage and seeded from the adjacent Cape Lambert Village “A” plant, an existing WWS plant already in service.

Outcome

The process was producing compliant final effluent within seven days of commissioning.

Pilbara · June 2013 · 1600 EP, approximately 496 m³/day

Nammuldi Village

Problem

Nammuldi Village required a 1,600 EP plant – approximately 496 kL/day.

Solution

The plant was a modular SBR process.

Outcome

The process was producing high quality compliant final effluent within 72 hours of commissioning.

Pilbara · June 2012 · 900 EP, 280 kL/day, upgraded from 450 EP

West Angelas #1 Upgrade

Problem

West Angelas Village Plant 1 was commissioned in August 2006 at 450 EP, approximately 140 kL/day. As the village grew the plant needed to be expanded.

Solution

WWS expanded the existing plant by converting the process to a membrane bio reactor. The scope covered the design calculations, drawings, manuals and all components and labour to carry out the upgrade.

Outcome

The plant doubled in rated capacity and continues to operate. The MBR process lifts final effluent to “A grade” quality, which can be re-used for landscape reticulation.

Pilbara · October 2009 · 1600 EP, approximately 560 m³/day

Port Haven Village

Problem

Port Haven Accommodation Village at Port Hedland required 1,600 EP of treatment capacity – approximately 560 kL/day.

Solution

The plant was a modular SBR process.

Outcome

The process was producing compliant final effluent within 30 days. The plant was commissioned in October 2009 and remains in operation.

Pilbara · June 2013 · 88 m³/day

Finucane Island

Problem

Port Hedland Inner Harbour’s Finucane Island facility needed 88 kL/day of treatment for a “non-accommodation” waste water stream. These streams carry proportionally high influent nitrogen, and erratic curves.

Solution

The plant was designed specifically to address the high influent nitrogen and sporadic loading associated with non-accommodation applications.

Outcome

Very low and sporadic loading extended the time needed for the system biology to fully develop, but the plant was fully compliant within 40 days of commissioning and remains in operation.

Pilbara · April 2006 · 1000 EP, 310 m³/day

Pannawonica Town

Problem

Pannawonica is a Pilbara townsite: 1,000 EP, 310 kL/day, with the load profile of a small town and no neighbouring network.

Solution

The plant was a modular SBR process.

Outcome

The process was producing compliant final effluent within 30 days. The plant was commissioned in April 2006 and remains in operation.

  • Cape Lambert Village “B” – aeration tank

    Cape Lambert Village “B” – aeration tank

  • Finucane Island – clarifier and bridge

    Finucane Island – clarifier and bridge

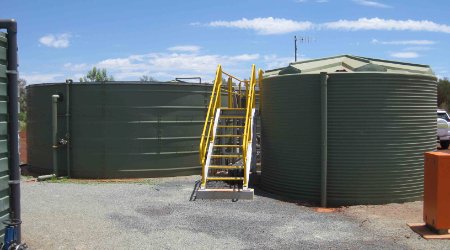

  • Brockman 4 Village – storage tank and access stair

    Brockman 4 Village – storage tank and access stair

  • Operator on the walkway above the treatment tanks

    Operator on the walkway above the treatment tanks

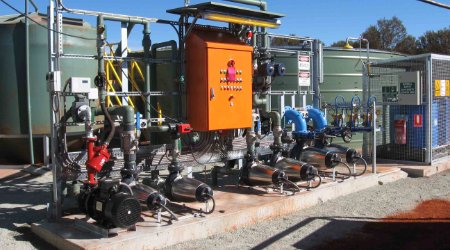

  • Inlet works, screw conveyor and process control panel

    Inlet works, screw conveyor and process control panel

  • Motor control centre inside the plant switchroom

    Motor control centre inside the plant switchroom

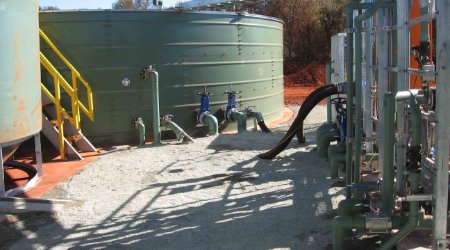

  • Process tanks at Nelson Point Port Hedland

    Process tanks at Nelson Point Port Hedland

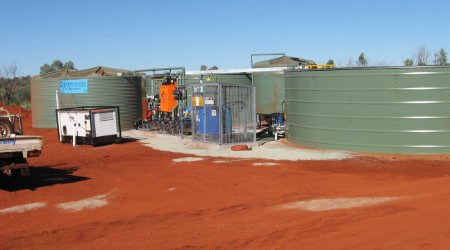

  • Finucane Island – process equipment and tanks

    Finucane Island – process equipment and tanks

Project examples

Plant Service Capacity Commissioned Status
West Angelas #2 Upgrade West Angelas Village, Pilbara, Western Australia Waste water treatment 900 EP, 280 kL/day, upgraded from 450 EP May 2014 Operating
Brockman 4 Central Brockman 4 Mine, Pilbara, Western Australia Waste water treatment – December 2013 Operating
Cape Lambert Village "B" Cape Lambert Accommodation Village, Pilbara, Western Australia Waste water treatment 1200 EP, 372 m³/day June 2013 Operating
Finucane Island Port Hedland, Western Australia Waste water treatment 88 m³/day June 2013 Operating
Nammuldi Village Nammuldi Village, Brockman 4, Pilbara, Western Australia Waste water treatment 1600 EP, approximately 496 m³/day June 2013 Operating
Nelson Point Port Hedland, Western Australia Waste water treatment 184 m³/day March 2013 Operating
Karara Village Plant 2 Perenjori, Western Australia Waste water treatment 600 EP, 186 m³/day October 2012 Operating
Karara Village Plant 1 Perenjori, Western Australia Waste water treatment 600 EP, 186 m³/day August 2012 Operating
West Angelas #1 Upgrade West Angelas Village, Pilbara, Western Australia Waste water treatment 900 EP, 280 kL/day, upgraded from 450 EP June 2012 Operating
Hope Downs 4 Plant 2 Hope Downs, Western Australia Waste water treatment 600 EP, 186 m³/day March 2012 Operating
Cape Lambert EPCM Cape Lambert Port, Pilbara, Western Australia Waste water treatment 50 m³/day January 2012 Decommissioned
Hope Downs 4 Plant 1 Hope Downs, Western Australia Waste water treatment 600 EP, 186 m³/day November 2011 Operating
Cape Lambert "A" Plant 2 Cape Lambert Accommodation Village, Pilbara, Western Australia Waste water treatment 600 EP, 186 m³/day August 2011 Decommissioned
West Angelas Mine West Angelas Mine, Pilbara, Western Australia Waste water treatment 50 m³/day August 2011 Operating
Jundunmunnah Plant 2 Tom Price, Pilbara, Western Australia Waste water treatment 300 EP, 94 m³/day June 2011 Operating
Weelumurra Village Weelumurra, Western Australia Waste water treatment 150 EP, 46 m³/day May 2011 Decommissioned
Koodaideri Village Koodaideri, Western Australia Waste water treatment 150 EP, 46 m³/day April 2011 Operating
Marandoo Mine Karajini, Western Australia Waste water treatment 32 m³/day April 2011 Operating
Marandoo Village Plant 2 Karajini, Western Australia Waste water treatment 500 EP, 155 m³/day January 2011 Operating
Hope Downs Nth Plant 2 Hope Downs, Western Australia Waste water treatment 600 EP, 186 m³/day July 2010 Operating
Karara Mine Karara, Perenjori Western Australia Waste water treatment 60 m³/day June 2010 Operating
Marandoo Village Plant 1 Karajini, Western Australia Waste water treatment 500 EP, 155 m³/day June 2010 Operating
Lochada Village Perenjori, Western Australia Waste water treatment 300 EP, 93 m³/day April 2010 Decommissioned
Sinclair Village Leinster Western Australia Waste water treatment 200 EP, 62 m³/day April 2010 Decommissioned
Port Haven Village Port Hedland, Western Australia Waste water treatment 1600 EP, approximately 560 m³/day October 2009 Operating
Brockman 4 Village Brockman 4 Village, Pilbara, Western Australia Waste water treatment 1400 EP, approximately 434 m³/day July 2008 Operating
West Angelas Plant 2 West Angelas Village, Pilbara, Western Australia Waste water treatment 450 EP, 140 kL/day February 2008 Operating
Marillana Village Yandi, Western Australia Waste water treatment 400 EP, 140 m³/day December 2007 Decommissioned
Cape Lambert "A" Plant 1 Cape Lambert Accommodation Village, Pilbara, Western Australia Waste water treatment 600 EP, 186 m³/day August 2007 Decommissioned
Hope Downs Nth Plant 1 Hope Downs, Western Australia Waste water treatment 610 EP, 190 m³/day August 2007 Operating
Hope Downs Mine Hope Downs, Western Australia Waste water treatment 27 m³/day March 2007 Operating
Hope Downs Sth Plant 2 Hope Downs, Western Australia Waste water treatment 300 EP, 93 m³/day December 2006 Operating
Koolan Island Village Koolan Island, Western Australia Waste water treatment 270 EP, 80 m³/day October 2006 Operating
West Angelas Plant 1 West Angelas Village, Pilbara, Western Australia Waste water treatment 450 EP, approximately 140 m³/day August 2006 Operating
Hope Downs Sth Plant 1 Hope Downs, Western Australia Waste water treatment 300 EP, 93 m³/day June 2006 Operating
Kangaroo Hill Village Dampier, Western Australia Waste water treatment 600 EP, 186 m³/day June 2006 Operating
Jundunmunnah Plant 1 Tom Price, Pilbara, Western Australia Waste water treatment 500 EP, 155 m³/day May 2006 Operating
Pannawonica Town Pannawonica, Western Australia Waste water treatment 1000 EP, 310 m³/day April 2006 Operating
Lawlers Village Leonora, Western Australia Waste water treatment 400 EP, 120 m³/day December 2005 Decommissioned
Sunrise Dam Mine Laverton, Western Australia Waste water treatment 10 m³/day March 2003 Operating
Spinifex Village Yandi, Western Australia Waste water treatment 700 m³/day March 2000 Operating
St Ives Goldmine Kambalda, Western Australia Waste water treatment 20 m³/day March 2000 Operating
Brockman 2 Minesite Brockman 2, Western Australia Waste water treatment 20 m³/day March 1999 Operating
Three Springs Talc Mine Three Springs, Western Australia Waste water treatment 10 m³/day March 1999 Operating
Brockman 4 Potable water – – Detail pending
Mesa A Waste water treatment – – Detail pending
Trade Waste Trade waste – – Detail pending
West Angelas Potable water – – Detail pending

Site and operation names are published as they appear on the Waste Water Services project record. They are listed to show where WWS plant operates; no endorsement by the operators is implied.

Find a comparable plant

Send the population or flow and the discharge requirement. We will point to the plant on this register closest to it, and the commissioning time it took.
